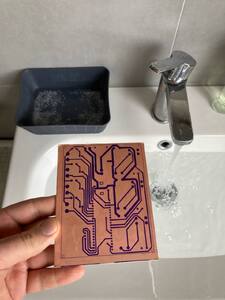

 [![hand etching prototype pcb](https://www.xythobuz.de/img/lars_13_small.jpg)](https://www.xythobuz.de/img/lars_13.jpg)

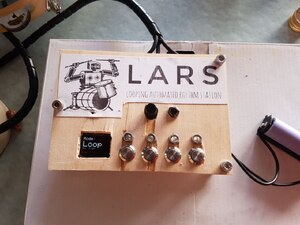

 [![assembled prototype](https://www.xythobuz.de/img/lars_10_small.jpg)](https://www.xythobuz.de/img/lars_10.jpg)
+
+
+
+
+<div id="threejstarget" style="width: 600px; height: 400px; background-color: white; border: 1px solid black;"></div>
+
+<script type="importmap">
+  {
+    "imports": {
+      "three": "https://cdn.jsdelivr.net/npm/three@0.163.0/build/three.module.js",
+      "three/addons/": "https://cdn.jsdelivr.net/npm/three@0.163.0/examples/jsm/"
+    }
+  }
+</script>
+
+<script type="module">
+
+
+import * as THREE from 'three';
+import { OrbitControls } from 'three/addons/controls/OrbitControls.js';
+import { STLLoader } from 'three/addons/loaders/STLLoader.js'
+import { VRMLLoader } from 'three/addons/loaders/VRMLLoader.js';
+
+const container = document.getElementById('threejstarget');
+
+const width = 600;
+const height = 400;
+
+const scene = new THREE.Scene();
+scene.add(new THREE.AxesHelper(3));
+
+const camera = new THREE.PerspectiveCamera( 75, width / height, 0.1, 1000 );
+
+const renderer = new THREE.WebGLRenderer();
+renderer.setSize( width, height );
+
+container.appendChild( renderer.domElement );
+
+const light = new THREE.DirectionalLight( 0xffffff, 0.5 );
+light.position.set(0, 1, 0);
+scene.add(light);
+
+const light42 = new THREE.DirectionalLight( 0xffffff, 0.5 );
+light42.position.set(1, 0, 0);
+scene.add(light42);
+
+const light23 = new THREE.DirectionalLight( 0xffffff, 0.5 );
+light23.position.set(0, 0, 1);
+scene.add(light23);
+
+const lightb = new THREE.DirectionalLight( 0xffffff, 0.5 );
+lightb.position.set(0, -1, 0);
+scene.add(lightb);
+
+const light42b = new THREE.DirectionalLight( 0xffffff, 0.5 );
+light42b.position.set(-1, 0, 0);
+scene.add(light42b);
+
+const light23b = new THREE.DirectionalLight( 0xffffff, 0.5 );
+light23b.position.set(0, 0, -1);
+scene.add(light23b);
+
+const light2 = new THREE.AmbientLight(0x101010);
+light2.position.set(100, 100, 100);
+scene.add(light2);
+
+const material = new THREE.MeshStandardMaterial();
+//material.roughness = 0.42;
+
+const loader = new STLLoader();
+loader.load(
+    'actuator_all.stl',
+    function (geometry) {
+        const mesh = new THREE.Mesh(geometry, material)
+        scene.add(mesh)
+    },
+    (xhr) => {
+        console.log((xhr.loaded / xhr.total) * 100 + '% loaded')
+    },
+    (error) => {
+        console.log(error)
+    }
+);
+
+/*
+const loader = new VRMLLoader();
+loader.load(
+    //'drumkit.wrl',
+    'dispensy.wrl',
+    function (object) {
+        scene.add(object);
+});
+*/
+
+const controls = new OrbitControls( camera, renderer.domElement );
+controls.enableDamping = true;
+
+// https://wejn.org/2020/12/cracking-the-threejs-object-fitting-nut/
+const fitCameraToCenteredObject = function (camera, object, offset, orbitControls ) {
+    const boundingBox = new THREE.Box3();
+    boundingBox.setFromObject( object );
+
+    var middle = new THREE.Vector3();
+    var size = new THREE.Vector3();
+    boundingBox.getSize(size);
+
+    // figure out how to fit the box in the view:
+    // 1. figure out horizontal FOV (on non-1.0 aspects)
+    // 2. figure out distance from the object in X and Y planes
+    // 3. select the max distance (to fit both sides in)
+    //
+    // The reason is as follows:
+    //
+    // Imagine a bounding box (BB) is centered at (0,0,0).
+    // Camera has vertical FOV (camera.fov) and horizontal FOV
+    // (camera.fov scaled by aspect, see fovh below)
+    //
+    // Therefore if you want to put the entire object into the field of view,
+    // you have to compute the distance as: z/2 (half of Z size of the BB
+    // protruding towards us) plus for both X and Y size of BB you have to
+    // figure out the distance created by the appropriate FOV.
+    //
+    // The FOV is always a triangle:
+    //
+    //  (size/2)
+    // +--------+
+    // |       /
+    // |      /
+    // |     /
+    // | F° /
+    // |   /
+    // |  /
+    // | /
+    // |/
+    //
+    // F° is half of respective FOV, so to compute the distance (the length
+    // of the straight line) one has to: `size/2 / Math.tan(F)`.
+    //
+    // FTR, from https://threejs.org/docs/#api/en/cameras/PerspectiveCamera
+    // the camera.fov is the vertical FOV.
+
+    const fov = camera.fov * ( Math.PI / 180 );
+    const fovh = 2*Math.atan(Math.tan(fov/2) * camera.aspect);
+    let dx = size.z / 2 + Math.abs( size.x / 2 / Math.tan( fovh / 2 ) );
+    let dy = size.z / 2 + Math.abs( size.y / 2 / Math.tan( fov / 2 ) );
+    let cameraZ = Math.max(dx, dy);
+
+    // offset the camera, if desired (to avoid filling the whole canvas)
+    if( offset !== undefined && offset !== 0 ) cameraZ *= offset;
+
+    camera.position.set( 0, 0, cameraZ );
+
+    // set the far plane of the camera so that it easily encompasses the whole object
+    const minZ = boundingBox.min.z;
+    const cameraToFarEdge = ( minZ < 0 ) ? -minZ + cameraZ : cameraZ - minZ;
+
+    camera.far = cameraToFarEdge * 3;
+    camera.updateProjectionMatrix();
+
+    if ( orbitControls !== undefined ) {
+        // set camera to rotate around the center
+        orbitControls.target = new THREE.Vector3(0, 0, 0);
+
+        // prevent camera from zooming out far enough to create far plane cutoff
+        orbitControls.maxDistance = cameraToFarEdge * 2;
+    }
+};
+
+//camera.position.z = 50;
+fitCameraToCenteredObject(camera, scene, 0, controls)
+
+function render() {
+    renderer.render(scene, camera);
+}
+
+function animate() {
+    requestAnimationFrame(animate);
+    controls.update();
+    render();
+}
+
+animate();
